BJ-W35Paperbowl Making Machine with ultrasonic sealed device,is fit for making both single pe and double pe coated paper it is an automatic equipment with multi-station.

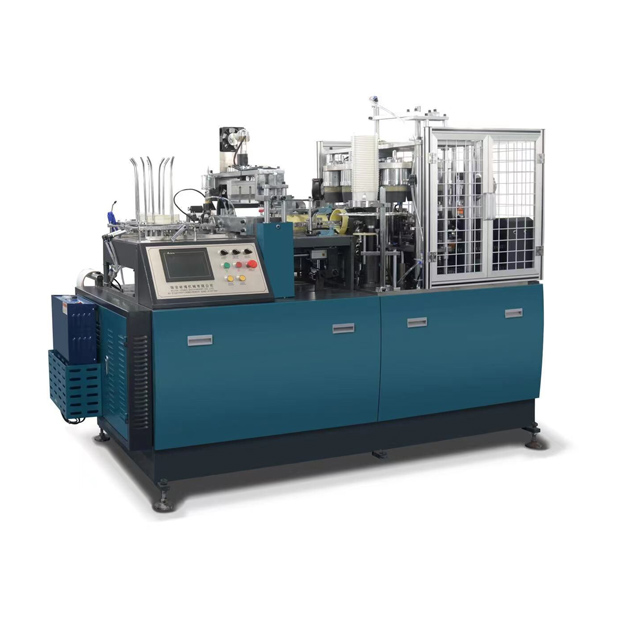

Automatic Middle Speed Paper Bowl Making Machine
MODEL: BJ-W35
Main technical datas:
|
Bowl sizes |
35oz（molds can be changed） Top dia: 75-150mm; bottom dia.:70-130mm; height: 50-130mm ; knurling:5-12mm; |
|
Paper material |
140-350g/㎡（single /double pe coated paper） |
|
Speed |
50-70 pcs per min |
|
Voltage |
380V 50Hz |
|
Total power |
4.8 KW |
|
Air requirement |
0.6mpa0.6m3/min, Air compressor supplied by customerself |
|
Weight |
2000kg |
|
Overall size |
2350x1250x1900mm |
|
Packing size |
|
Brief :

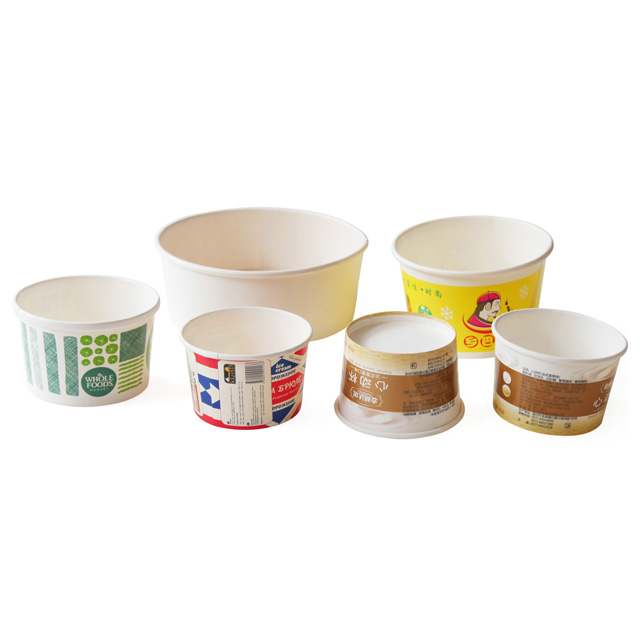

BJ-W35Paperbowl Making Machine with ultrasonic sealed device，is fit for making both single pe and double pe coated paper it is an automatic equipment with multi-station. It has high effiency and high performance features , the speed can up to 60-70 pcs per min, we adopts Advanced high precision camdrive with gearing driving system to make each station accurate molding, servo tracking paper to lock the size of cup bottom paper ,effectively save raw materials.This machine is an ideal machine for manufacturing noodels cups, salad bowls,ice cream cupsetc.

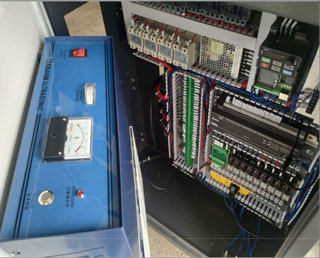

MainElectrical configuration (brand):
|
Sensors |
Panasonic |
 |
|
Buttons |
Schneider |
|
|
Touch screen |
Delta |
|
|
PLC |
Delta |
|
|
Inverter |
Delta |
|
|
Small relay |
Schneider |
|
|
AC contactor |
Schneider |
|
|
Solid state relay |
Mean well |
