products

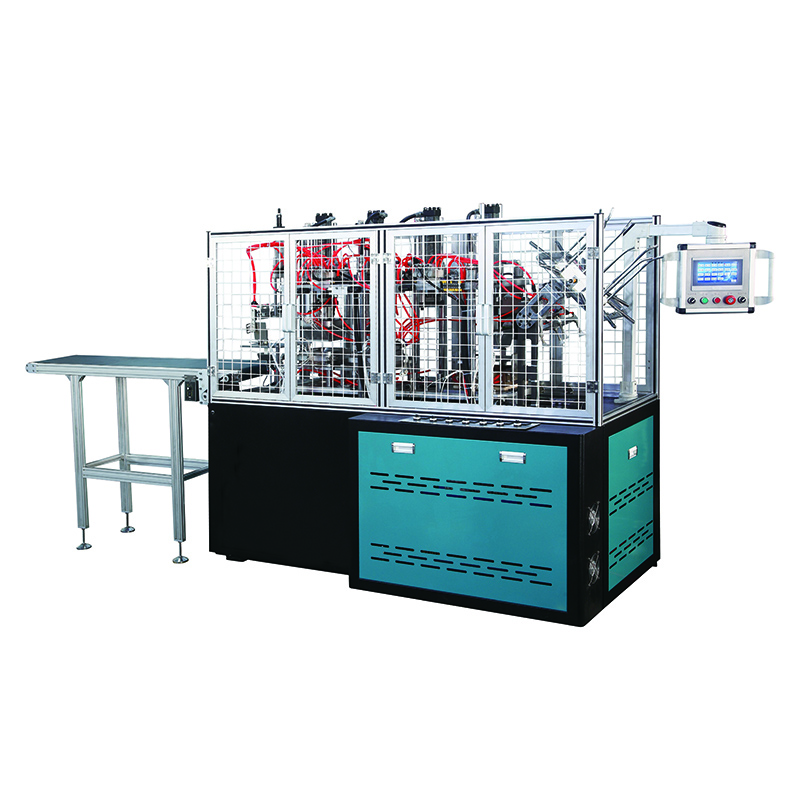

1. It is a fully automatic square bowl forming equipment, with the advantages of fast speed and easy operation.
2. Through the continuous process of automatic paper feeding,box mold forming , the top with three course curlings , automatic counting,，collection etc,， the whole process is controlled by microcomputer
which is used for the production of disposable take away bowl, square bowl, sushi box, sandwich box etc.
3. Use the hydraulic to increase the molding pressure and better match the tray top curling demand.
4. Servo drive, more accurate positioning.
5, equipment operation and installation is simple, energy saving and environmental protection?
Main features：
1. It is a fully automatic square bowl forming equipment, with the advantages of fast speed and easy operation.
2. Through the continuous process of automatic paper feeding,box mold forming , the top with three course curlings , automatic counting,，collection etc,， the whole process is controlled by microcomputer
which is used for the production of disposable take away bowl, square bowl, sushi box, sandwich box etc.
3. Use the hydraulic to increase the molding pressure and better match the tray top curling demand.
4. Servo drive, more accurate positioning.
5, equipment operation and installation is simple, energy saving and environmental protection
Technical specifications:
|
Type |
BJ-CHX |
|
Production capacity |
12—15 pcs per min |
|
Maximum paper feeder size: |
300 x260mm |
|
Max Paper Convey Width: |
260mm |
|
Suitable Material: |
250-400g/m2 (PE Coated paper) |
|
Rated Power: |
15 KW |
|
Total Weight: |
1000KGS |
|
Packing Dimension（without conveyor）: |
2300（L）x 1100(W) x 1900(H)mm |
|
Working Air Source: |
Air pressure 0.5Mpa (Need to buy compressor Gas volume：0.2-03 m3/Min |
