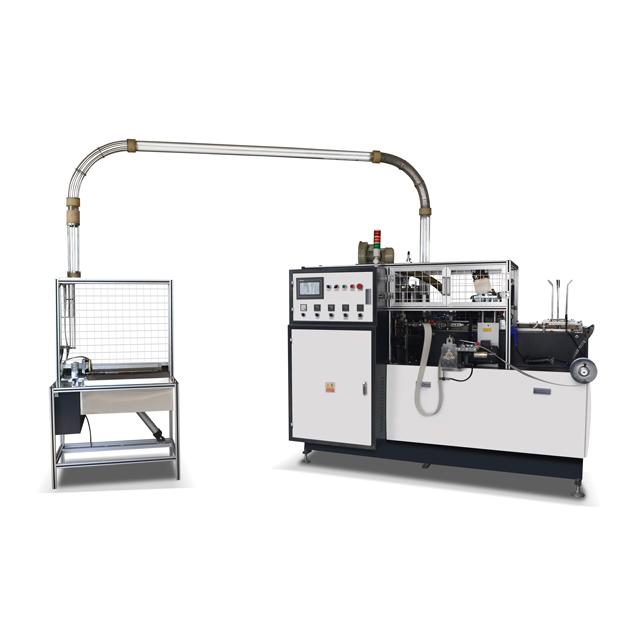

BJ-C12 Paper Cup Making Machine with ultrasonic sealed device,，is fit for making both single pe and double pe coated paper.it is an automatic equipment with multi-station.
Automatic Middle Speed Paper Cupforming Machine
MODEL: BJ-C12
Main technical datas:
|
Cup sizes |
2oz-16oz（molds can be changed） Top dia.:46-100mm; bottom dia.:30-72mm; height :32-132mm ; knurling:4-10mm; |
|
Paper material |
150-350g/㎡（single /double pe coated paper） |
|
Speed |
68-85pcs per min |
|
Voltage |
220V/380V 50Hz |
|
Total power |
4 KW |
|
Air supplier |
0.4-0.5m3/min |
|
Weight |
1700kg |
|
Overall size |
2000x1230x1700mm（LxWxH） |
|
Packing size |
2150x1460x2100 mm ; 980x680x2150 mm |
Brief :

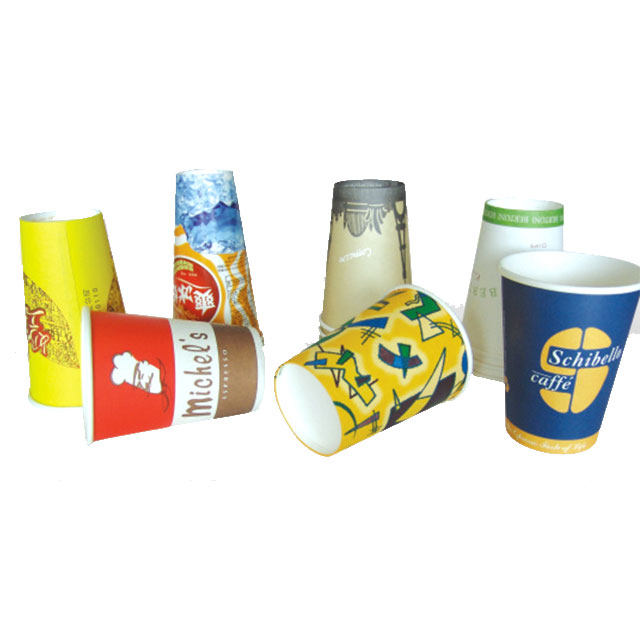

BJ-C12 Paper Cup Making Machine with ultrasonic sealed device,，is fit for making both single pe and double pe coated paper.it is an automatic equipment with multi-station. It has high effiency and high performance features , the speed can up to 65-85 pcs per min, we adopts Advanced high precision camdrive with gearing driving system to make each station accurate molding, servo tracking paper to lock the size of cup bottom paper ,effectively save raw materials.This machine is an ideal machine for manufacturing tea cups, advertisement cup, coffee cup,ice cream cups , juices cups etc.
Spare parts list:
|
Item no.: |
Part name |
Qty |
|
1). |
Rubber suckers |
4-6pcs |
|
2). |
Knurling Bearing |
1pcs |
|
3). |
Alu heater |
1pcs |
|
4). |
Heater pipes |
1pcs |
|
5). |
Knurling wheel |
1pcs stock |
|
6). |
Full tooling box |
1set |
|
7). |
Paper pusher |
1pcs |
|
8). |
Springs |
4pcs |
If you have any enquiry about quotation or cooperation,please feel free to email us at [email protected] or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
