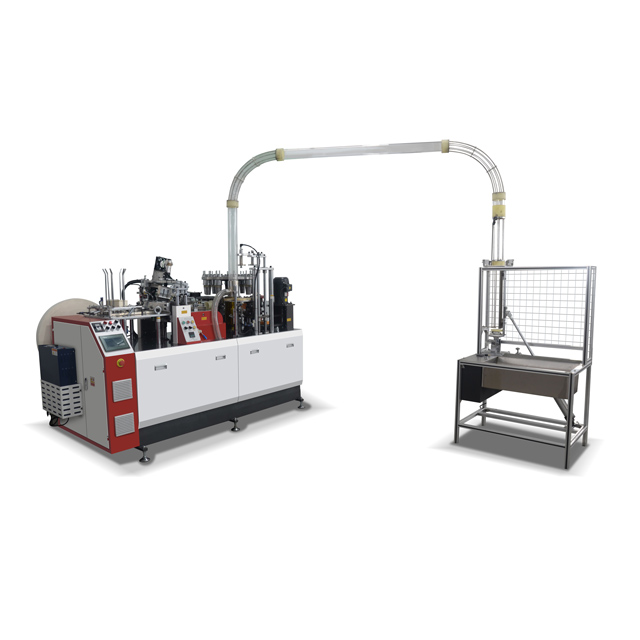

BJ-OC100 high spee Paper Cup Making Machine with ultrasonic sealed device,，is fit for making both single pe and double pe coated paper.it is an automatic equipment with multi-station.
Automatichigh Speed Paper Cup Machine
MODEL: BJ-OC100
Main technical datas:
|
Cup sizes |
2oz-12 oz（molds can be changed） D(Top dia.):45-100mm; d (bottom dia.):35-76mm; H(height) :30-115mm ; knurling:4-10mm; |
 |
|
Paper material |
150-350g/㎡（single /double pe coated paper） |
|
|
Speed |
95-105 pcs per min |
|
|
Voltage |
220V/380V 50Hz |
|
|
Total power |
5 KW |
|
|
Air supplier
|
Air pressure：0.4Mpa,；air out-put：0.6m3/min Need to buy air compressor (by user) |
|
|
Weight |
1800kgs |
|
|
Packing size |
2270x1400x1970mm（LxWxH）machine size 1000X750X2100mm collection table size |
|
Brief :

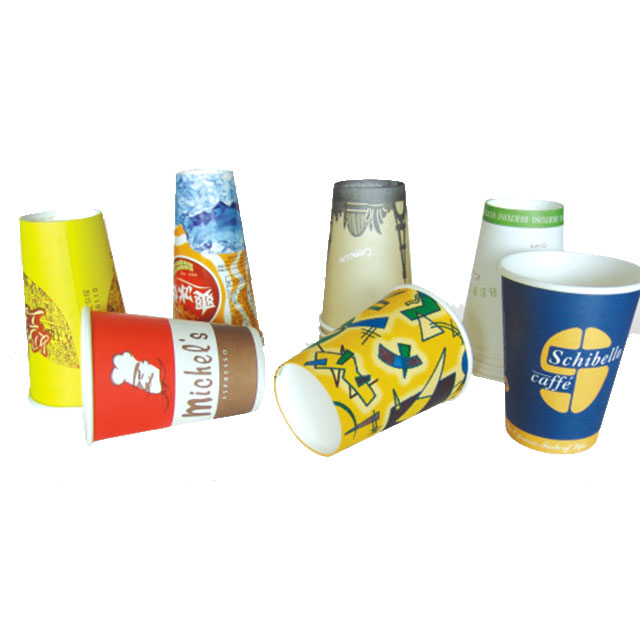

BJ-OC100 high spee Paper Cup Making Machine with ultrasonic sealed device,，is fit for making both single pe and double pe coated paper.it is an automatic equipment with multi-station. It has high effiency and high performance features , the speed can up to 90-110 pcs per min, we adopts Advanced high precision camdrive with gearing driving system to make each station accurate molding, servo tracking paper to lock the size of cup bottom paper ,effectively save raw materials.This machine is an ideal machine for manufacturing tea cups, advertisement cup, coffee cup,ice cream cups , juices cups etc
