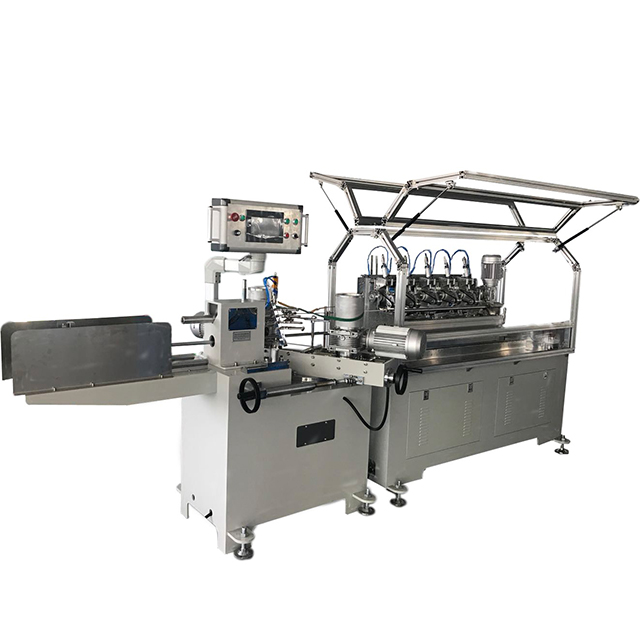

UNL-XG50 Paper drinking straw making machine is used to producing different sizes and different length of straws .
Product Introduction
UNL-XG50 Paper drinking straw making machine is used to producing different sizes and different length of straws .
It include paper holder , glue holder, straw formed and cutter equipment. extra, automatic straw collection, dryer ,automatic paper connection equipment as optioned by customerself
Main technical datas
|
Number of roller |
2-5 layers |
|
Tube diameter |
6mm --12mm |
|
Tube wall-thickness |
0.3-2 mm |
|
Cutting Length |
120-950mm 5 cutters 120-1050mm 6 cutters |
|
Winding head |
2 |
|
Power |
5.9 KW |
|
Cutter system |
Multi-blades 5 sets / 6sets |
|
Gluing system |
Single /Double sides |
|
Operator |
1-2 person |
|
Winding speed |
40--60 m/min |
|
Speed control |
Frequency |
|
Working Air Pressure |
0.6Mpa |
|
Power Supply |
380V/3Phase/50Hz |
|
Measurement |
5600*1600*1750mm |
|
Working Space |
8000mm * 6000mm*1800mm |
|
Weight |
1500kgs |
