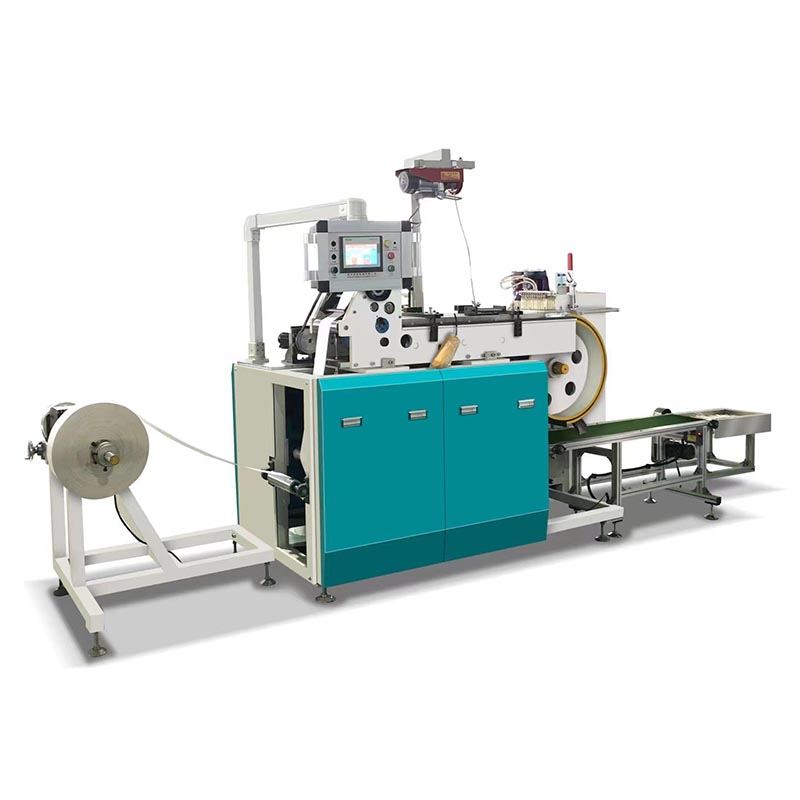

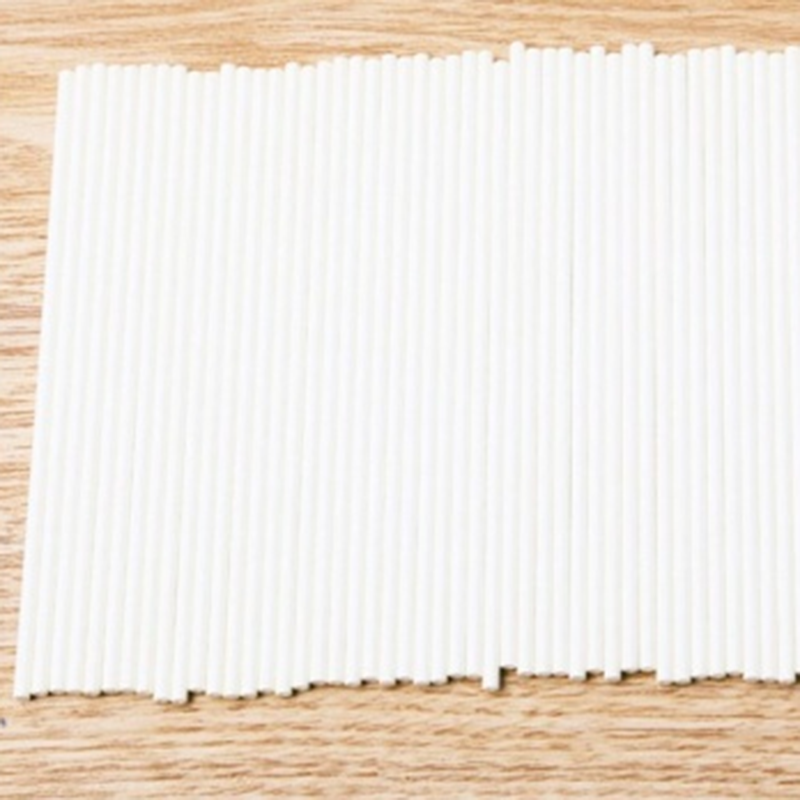

Since the straight roll machine only applies a layer of glue on the outer circle of the paper stick, the hardness of the paper stick produced by it is slightly softer than that of the inclined roll machine, so the straight roll machine paper stick is generally used in cakes, lollipops, shoes. Support and other products or use in the industr
Main features：
1. Since the straight roll machine only applies a layer of glue on the outer circle of the paper stick, the hardness of the paper stick produced by it is slightly softer than that of the inclined roll machine, so the straight roll machine paper stick is generally used in cakes, lollipops, shoes. Support and other products or use in the industry;
2. The straight rolling machine mostly produces products with a diameter of 3.0mm or more (the paper stick above 3.0mm is a bit soft);
3. Adopt man-machine interface, intuitive display and easy operation. With multiple sets of memory devices, there is no need to reset the product when changing products;
4. The parts are welded, finished and specially treated to ensure good quality. The machine has stable performance and long service life.
5. The diameter of the paper rod can be changed through servo control.
Main technical datas :
|
1) |
Paper rod diameter |
2.5-4mm & 4-6mm |
|
2) |
Paper stick length |
50-210mm(length can be customized) |
|
3) |
Productivity |
400-1000pcs/min |
|
4) |
Paper thickness |
60-100g/m2 |
|
5) |
Applicable glue |
Polyvinyl alcohol glue, starch glue |
|
6) |
Paper requirements |
single glossy paper |
|
7) |
Power Supply |
380V 50HZ |
|
8） |
Total Power |
8KW |
|
9） |
Feed table size |
1180*1210*950mm |
|
10） |
Dimensions |
2230*1100*2200mm |
|
11） |
Receiving table size |
2100*550*640mm |
|
12） |
Weight |
2000KGS |
